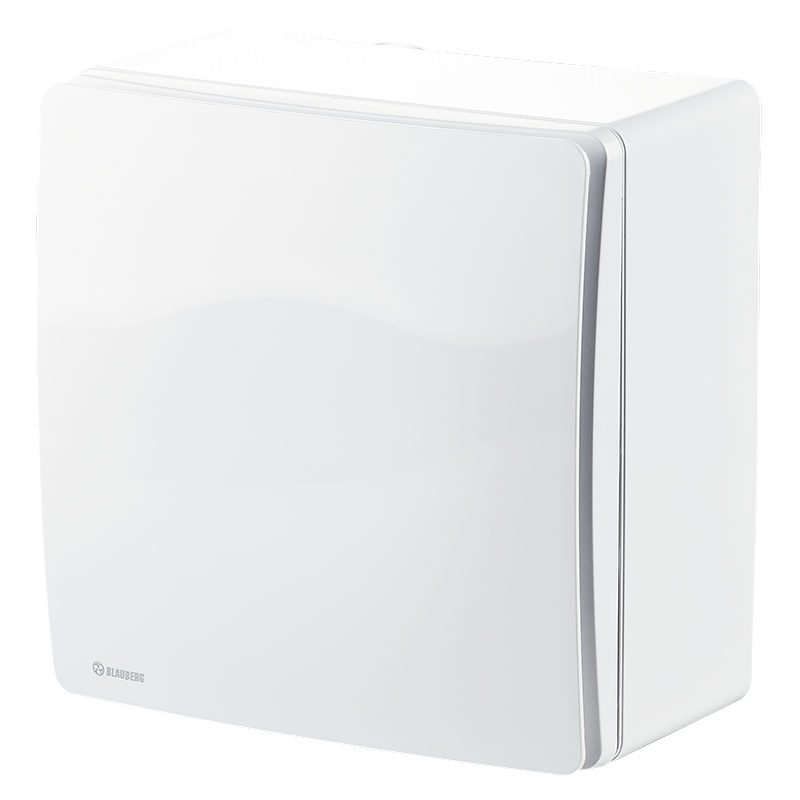

BLAUBERG VALEO-E 35/60 TR
It can be used in rooms with a single-pipe ventilation system, mainly with kitchen, bathroom, toilet, warehouse and other household installations. Wall installation only. The front panel and cover are made of high-quality ABS plastic, equipped with a plastic non-return valve. 80 mm connector. External design. 35 and 63 m3/h with a two-speed motor. Adjustable on and off delay.
Current consumption (A): 0,14
Diameter : 80 mm
Phase:: 1
Voltage: 230-240 V
IP protection: IP55
Power (W): 25
Noise level at a distance of 3 meters 3 m (dBA): 36
ADJUSTIBLE TIMER (VALEO-E...ТR)
Depending on wiring connection the fan is off or runs permanently at low speed. If the fan is turned on with an external switch it switches to higher speed 0 to 150 s after switch activation. After turning the fan off it continues running at higher speed 2 to 30 minutes and then reverts to previous mode. The fan run-out time and delay time for higher speed are regulated with the internal regulator.
