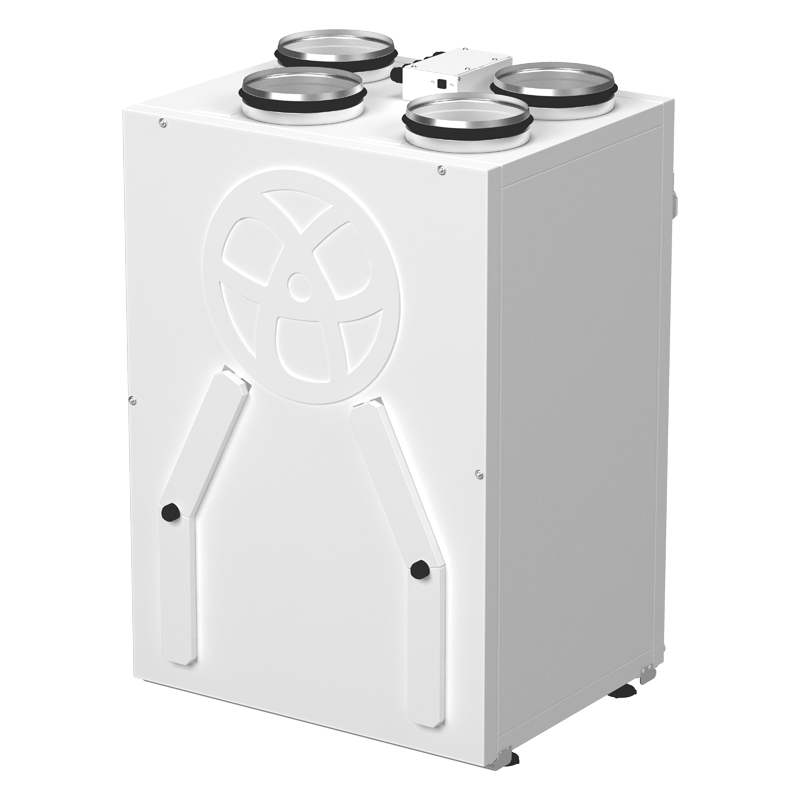

Vents VUE 250 VBE EC R A21
Air handling units for efficient energy saving supply and exhaust ventilation in flats, houses, cottages and other premises, with air flow up to 390 m3/h. Heat and humidity recovery minimizes ventilation heat losses during cold season and reduces air conditioner load during hot season. Controllable air exchange for creating the best suitable indoor microclimate. Compatible with 160 mm air ducts.
The units are equipped with high-efficient EC motors with an external rotor and a centrifugal impeller with backward curved blades. EC motors have the best power consumption to air capacity ratio and meet the latest demands concerning energy saving and high-efficient ventilation. EC motors are featured with high performance, low noise level and optimum control across the entire speed range. The impellers are dynamically balanced.
Equiped with enthalpyc heat exchanger for humidity recovery.
1-phase, 220-240 V voltage.
Insolation: 30 mm mineral wool

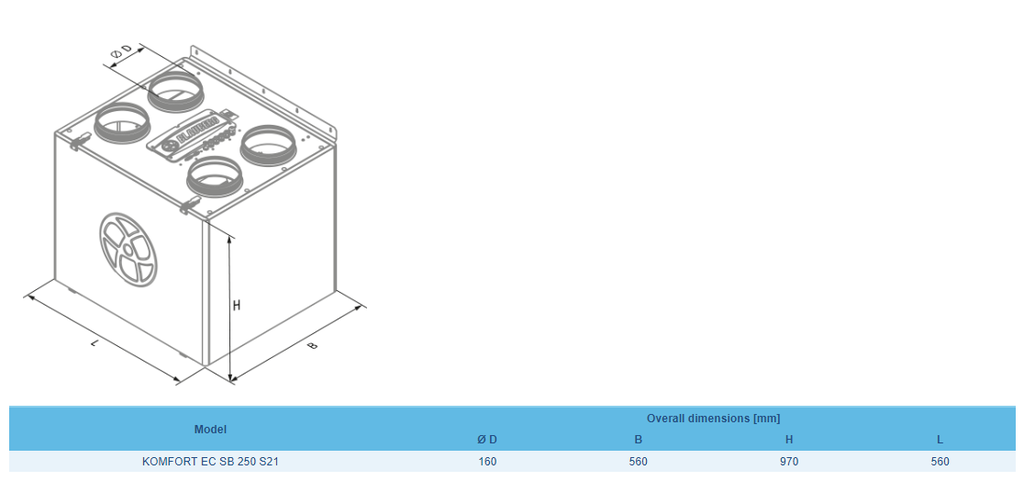

Dimensions: L560 x H970 x D560 mm, weight 66 kg
Energy class: A, energy efficiency up to 90%
Filtration G4 and F7 (optional)
Sound level on 3 m distance: 35 dBA
Air handling units for efficient energy saving supply and exhaust ventilation in flats, houses, cottages and other premises, with air flow up to 390 m3/h. Heat and humidity recovery minimizes ventilation heat losses during cold season and reduces air conditioner load during hot season. Controllable air exchange for creating the best suitable indoor microclimate. Compatible with 160 mm air ducts. The units are equipped with high-efficient EC motors with an external rotor and a centrifugal impeller with backward curved blades. EC motors have the best power consumption to air capacity ratio and meet the latest demands concerning energy saving and high-efficient ventilation. EC motors are featured with high performance, low noise level and optimum control across the entire speed range. The impellers are dynamically balanced. Equiped with enthalpyc heat exchanger for humidity recovery. 1-phase, 220-240 V voltage. Insolation: 30 mm mineral wool Dimensions: L560 x H970 x D560 mm, weight 66 kg Energy class: A, energy efficiency up to 90% Filtration G4 and F7 (optional) Sound level on 3 m distance: 35 dBA
Specifications
| Lokalni prezračevalni sistem | |
|---|---|
| Barva | Bela |
| AHU - central ventilation systems | |
|---|---|
| Brand | Vents or Vents by Blauberg Group |
| Heat recovery | from 90 to 92% |
| Max air flow in m3/h | 101-150 |
