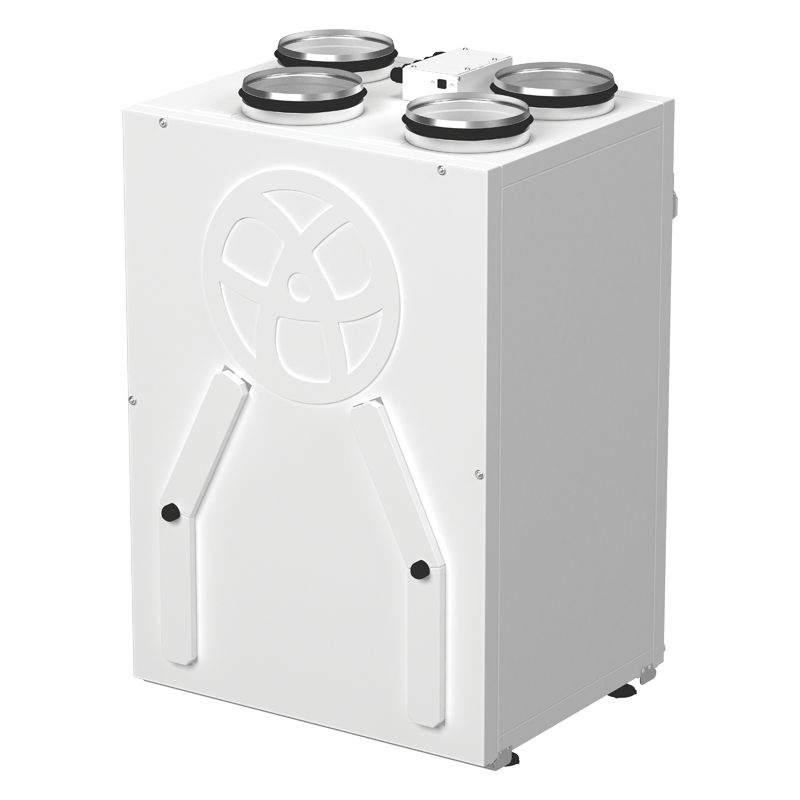

Vents VUT 250 VBE EC L(R) A21
Air handling units for efficient energy saving supply and exhaust ventilation in flats, houses, cottages and other premises, with air flow up to 390 m3/h. Heat and humidity recovery minimizes ventilation heat losses during cold season and reduces air conditioner load during hot season. Controllable air exchange for creating the best suitable indoor microclimate. Compatible with 160 mm air ducts. With build in electric heater 1400 W.
The units are equipped with high-efficient EC motors with an external rotor and a centrifugal impeller with backward curved blades. EC motors have the best power consumption to air capacity ratio and meet the latest demands concerning energy saving and high-efficient ventilation. EC motors are featured with high performance, low noise level and optimum control across the entire speed range. The impellers are dynamically balanced.
Poosibility to install enthalpyc heat exchanger for humidity recovery.
1-phase, 220-240 V voltage.
Insolation: 30 mm mineral wool
Dimensions: L560 x H970 x D560 mm, weight 66 kg
Energy class: A+, energy efficiency up to 90%
Filtration G4 and F7 (optional)
Sound level on 3 m distance: 35 dBA
Maximum unit power with electric heater: 1580 W
Electric heater current: 6.09 A
Air handling units for efficient energy saving supply and exhaust ventilation in flats, houses, cottages and other premises, with air flow up to 390 m3/h. Heat and humidity recovery minimizes ventilation heat losses during cold season and reduces air conditioner load during hot season. Controllable air exchange for creating the best suitable indoor microclimate. Compatible with 160 mm air ducts. With build in electric heater 1400 W. The units are equipped with high-efficient EC motors with an external rotor and a centrifugal impeller with backward curved blades. EC motors have the best power consumption to air capacity ratio and meet the latest demands concerning energy saving and high-efficient ventilation. EC motors are featured with high performance, low noise level and optimum control across the entire speed range. The impellers are dynamically balanced. Poosibility to install enthalpyc heat exchanger for humidity recovery. 1-phase, 220-240 V voltage. Insolation: 30 mm mineral wool Dimensions: L560 x H970 x D560 mm, weight 66 kg Energy class: A+, energy efficiency up to 90% Filtration G4 and F7 (optional) Sound level on 3 m distance: 35 dBA Maximum unit power with electric heater: 1580 W Electric heater current: 6.09 A
Specifications
| Lokalni prezračevalni sistem | |
|---|---|
| Brand | Vents or Vents part of Blauberg Group |
| Operation | APP on smart devices |
| AHU - central ventilation systems | |
|---|---|
| Max air flow in m3/h | 101-150 |
